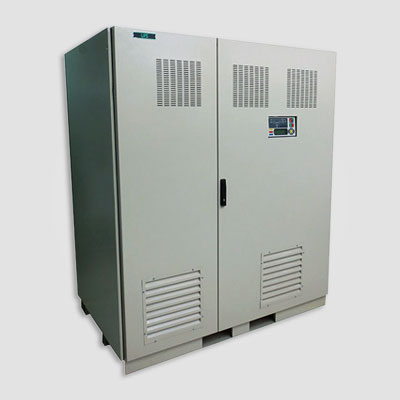

Industrial Grade UPS- Three Phase
We offer Industrial UPS with three phase output system with range available from 5 kVA to 800 kVA.
Our three phase Industrial UPS is specifically designed to provide secure power to Mission Critical Loads in all Industries as well as for Critical Data Processing Applications.
Three phase Industrial UPS has been designed to perform under extreme operating conditions that normally exist in industrial environments. The use of digital signal processors (DSP) has made the control loop of the UPS system very stable, drift free and with better HMI for monitoring, control and precise settings of parameters. High speed CAN bus interfaced sections make the system response very fast to handle the extreme transient load conditions. Intelligent power device with sandwich bus architecture makes the systems highly efficient and reliable.
Key Features
- online double conversion UPS
- High double conversion efficiency and ECO mode for low running costs and low environmental impact.
- Built-in inverter transformer for DC-AC galvanic protection of industrial type loads.
- Hot connection/disconnection of paralleled units for easy system resizing.
- Full IGBT technology and electronic PFC, ensuring 0.99 input PF and THDi<3% for maximum upstream sources compatibility.
- Accurate battery management providing ripple current minimization charge current/voltage control as per batteries manufacturers’ specifications and automatic/manual battery test for maximum battery expected life preservation.
- Dynamic Charging Mode (DCM) for maximum versatility in long autonomy and low charging time applications.
- Smart parallel management in load sharing or load synchronization of two UPS and load synchronization of two paralleled systems for optimum protection.
- Power and redundant parallel configurations with distributed or centralised static bypass for high fault current management.
- Dual DSP plus microcontroller logics for top performance and reliability.
- CAN-bus based distributed parallel control ensuring high load sharing accuracy and no single point of failure in parallel systems.
- Comprehensive set of communication options for total remote monitoring of equipment operation.
- Fully compliance with all international product standards for maximum quality guarantee.
